Battery Features
Scalable in increments of 5kWh
Built-in Energy Optimisers
Built-in Fire Extinguishers
Safe LiFePO4 battery cells
Compatible with iStore and Huwawei inverters
Model
IS-BATT-5000-S0
IS-BATT-10000-S0
IS-BATT-15000-S0
Usable Energy Capacity
5 - 30 kWh
Max Charge / Discharge Power
2.5kW - 5kW
Chemistry
LiFePO4
Product Dimensions
670 x 150 x 600 mm (W/D/H)
670 x 150 x 960 mm
670 x 150 x 1320 mm
Product Warranty
10 years
Product Documents
Media Category
Specification Sheet
File
Size
556 kb

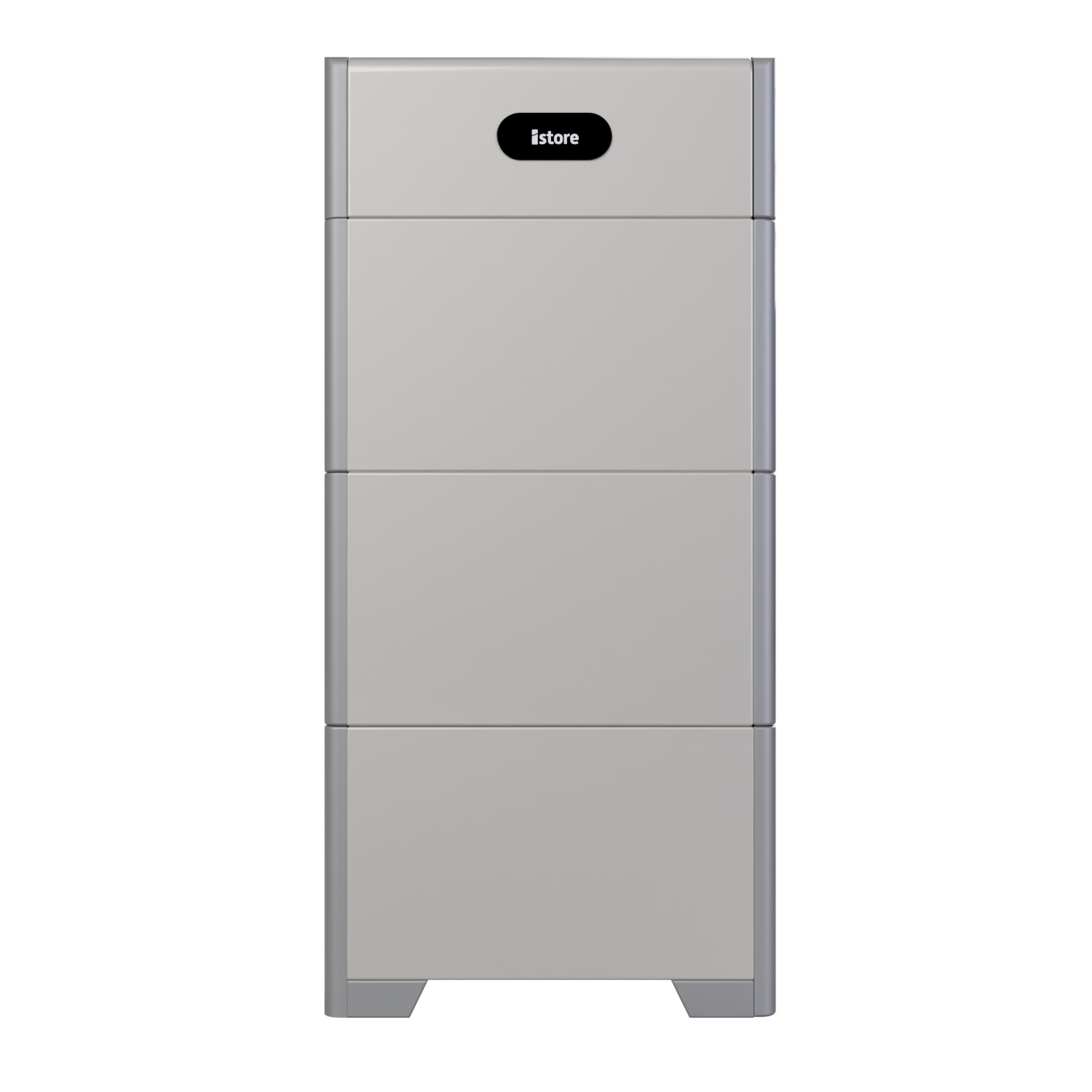

The Adaptable Solar Storage Solution

Introducing the iStore Solar Battery – the perfect option to couple with the iStore Hybrid inverter. Its modular design offers flexibility, allowing you to scale capacity from 5kWh to an impressive 30kWh.

Also compatible with Huawei inverters, safety takes centre stage with 4 layers of industry-leading protection charge.

Elevate your energy independence today with the iStore Solar Battery.

The Smartest & Safest Battery

  • Scalable from 5kWh up to 30kWh energy storage capacity in increments of 5kWh battery modules
  • 100% Depth of Discharge
  • DC-Coupled
  • Slim (only 15cm) / wall or floor-mounted
  • Optional ‘Backup Box’ for emergency backup power to essential circuits during a grid-outage
  • Safe Lithium-Iron-Phosphate (LiFePO4) battery cells
  • Built-in Energy Optimisers prevent older or faulty battery modules dragging down the performance of other battery modules

As an extra level of precaution, the iSTORE Battery also integrates a self-extinguishing pack in each battery module. This self-extinguishing method has 2 important advantages:

1/ Fast & Precise. Fire extinguished inside the battery module in less than 15 seconds; preventing fire from spreading

2/ Automatic & High reliability. Temperature sensors automatically trigger the self-extinguishing pack to activate. No reliance on external fire extinguishing after fire has already spread
