Inverter Features
Max. efficiency 97.7%
Max. input current 14A
Complies with all state network requirements
Integrate with adjustable Volt-Watt and Volt-Var function
DRM integrated, fully comply with AS/NZS 4777.2:2020
Model
S5-GR1P5K
S5-GR1P6K
System Size
5kW or 6kW
Phase
Single Phase
Efficiency
97.7%
MPP Tracker No.
2
Input Number
2
Product Warranty
5-year full warranty
Extendable free of charge to a 10-year full warranty upon online registration
Country of Manufacture
China
Product Documents
Media Category
Product Brochure
File
Size
588,283 kb
Media Category
User Manual
File
Size
6,641,199 kb
Reliability Safety Capacity
5kW and 6kW Single phase series string inverter’s efficiency of has improved dramatically. S5-GR1P5K, S5-GR1P6K series are suitable for the installation of single-phase input pv system of residential and adopt ultra-high switching frequency, ultra-thin single four-layer board design can greatly reduce the risk caused by the connector.

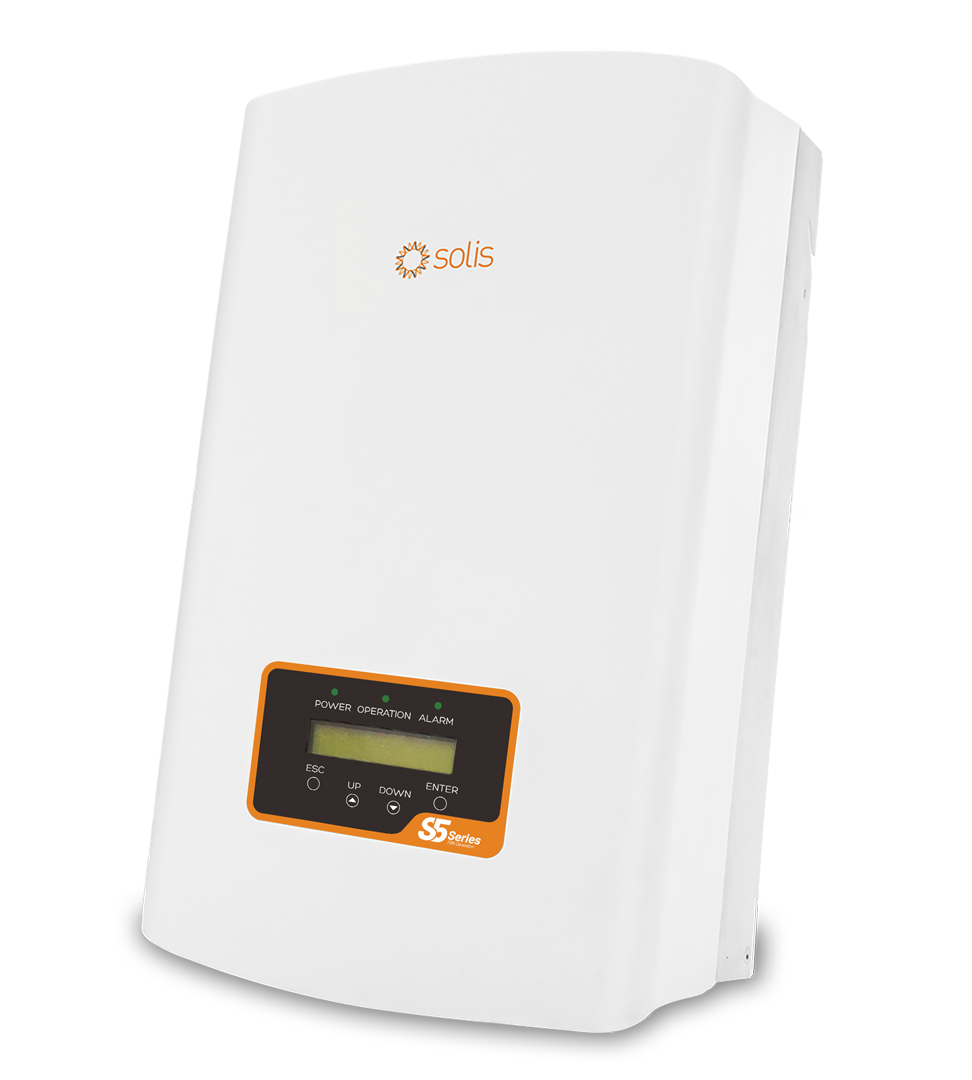

S5-GR1P5K, S5-GR1P6K Single Phase Inverter
Leading Features
- Max. efficiency 97.7%
- Max. input current 14A
- Complies with all state network requirements
- Integrate with adjustable Volt-Watt and Volt-Var function
- DRM integrated, fully comply with AS/NZS 4777.2:2020
- Built-in DC-PV2 Switch (optional), comply with AS/NZS 5033 requirements
- Support 24h consumption monitoring with a smart meter
- Super high frequency switching technology
- 2 MPPT design with precise MPPT algorithm
- Integrated Export Power Manager(EPM)
- Compact and lightweight
- Voltage active power and reactive power
