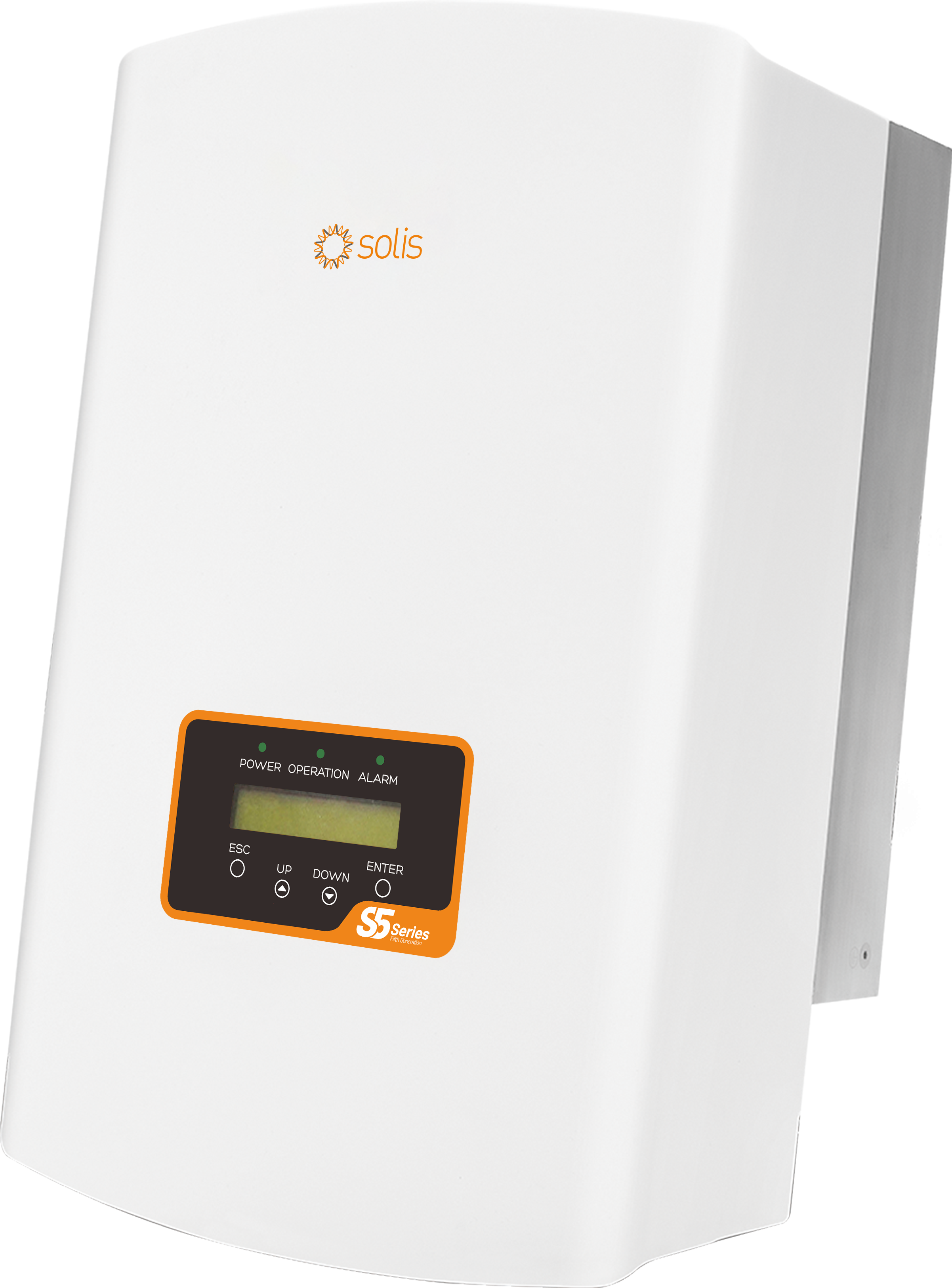

Solis S5 8kW 10kW Inverter

Inverter Features
Max. efficiency 98.0%
Max. input current 14A
Complies with all state network requirements
Integrate with adjustable Volt-Watt and Volt-Var function
DRM integrated, fully comply with AS/NZS 4777.2:2
Built-in DC-PV2 Switch, comply with AS/NZS 5033 requireme
Support 24h consumption monitoring with a smart m
Model
S5-GR1P8K
S5-GR1P10K
System Size
8kW or 10kW
Phase
Single Phase
Efficiency
98.0%
MPP Tracker No.
3
Input Number
3
Product Warranty
5-year full warranty
Extendable free of charge to a 10-year full warranty upon online registration
Country of Manufacture
China
Product Documents
Product Brochure
Size
584,924 kb
User Manual
Size
11,000,462 kb

Reliability Safety Capacity

8kW and 10kW Single phase series string inverter’s efficiency of has improved dramatically.
S5-GR1P8K, S5-GR1P10K series are suitable for installation on single-phase properties.

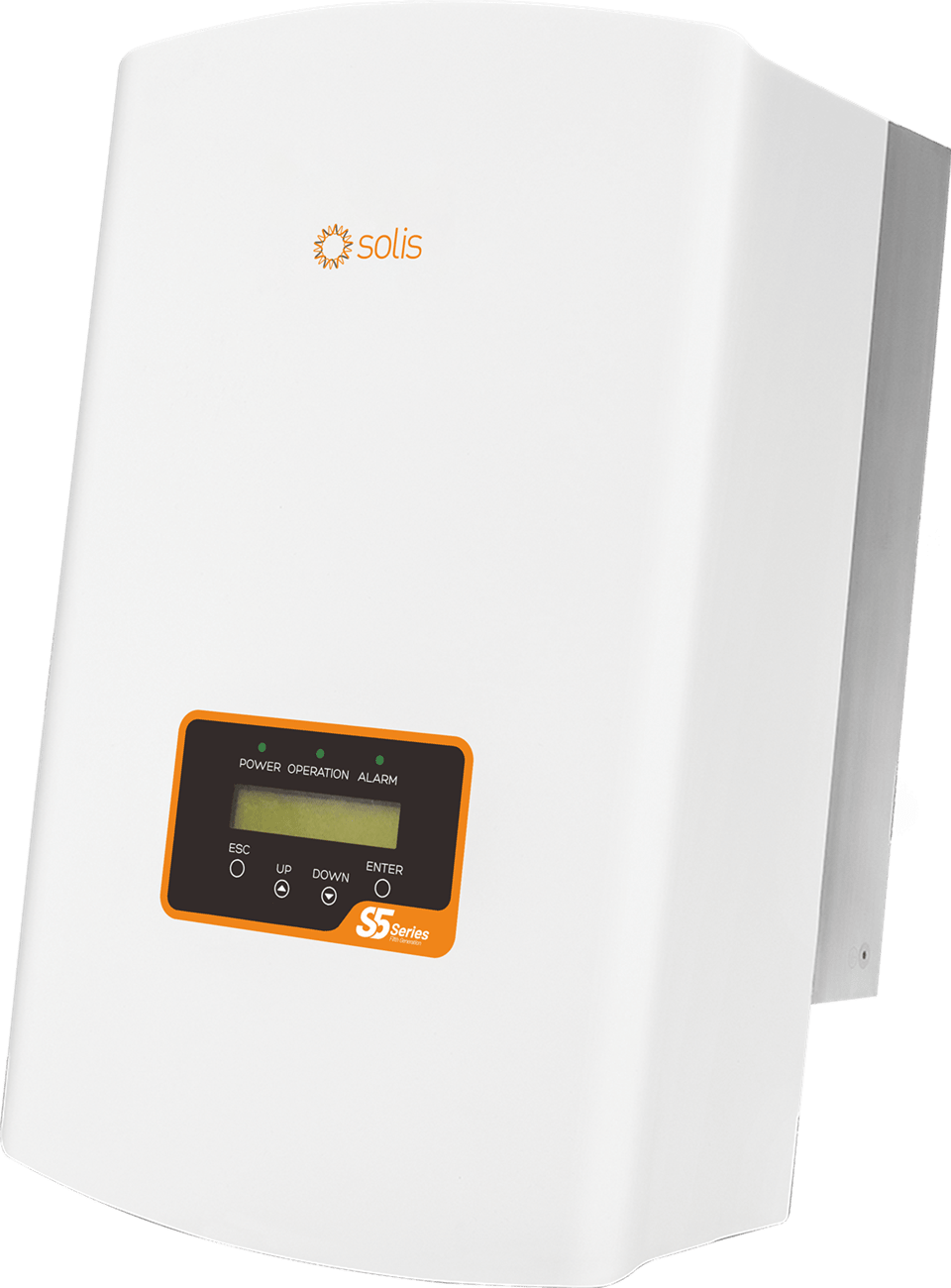

S5-GR1P8K, S5-GR1P10K Single Phase Inverter


Leading Features

  • Max. efficiency 98.0%
  • Max. input current 14A
  • Complies with all state network requirements
  • Integrate with adjustable Volt-Watt and Volt-Var function
  • DRM integrated, fully comply with AS/NZS 4777.2:2020
  • Built-in DC-PV2 Switch, comply with AS/NZS 5033 requirements
  • Support 24h consumption monitoring with a smart meter
  • Super high frequency switching technology
  • 3 MPPT design with precise MPPT algorithm
  • AFCI protection, proactively reduces fire risk
  • Integrated Export Power Manager(EPM)
  • Compact and lightweight
  • Voltage active power and reactive power




General Data

  • Dimensions: (W*H*D) 333*579*253 mm
  • Weight: 18.5 kg
  • Topology: Transformerless
  • Self consumption (night) <1 W
  • Operating ambient temperature range: -25 ~
  • +60°C
  • Relative humidity: 0-100%
  • Ingress protection: IP66
  • Cooling concept: Natural convection
  • Max. operation altitude: 4000 m
  • Grid connection standard: AS/NZS 4777.2:2020, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
  • Safety/EMC standard: IEC/EN 62109-1/-2, IEC EN 61000-6-1/-2/-3/-4

Protection

  • DC reverse-polarity protection Yes
  • Short circuit protection Yes
  • Output over current protection Yes
  • Surge protection Yes
  • Grid monitoring Yes
  • Anti-islanding protection Yes
  • Temperature protection Yes
  • Integrated DC switch Yes (PV2 Switch)
  • Integrated AFCI (DC arc-fault circuit protection) Yes*
